Scheda Tecnica
Capicorda preisolati occhiello

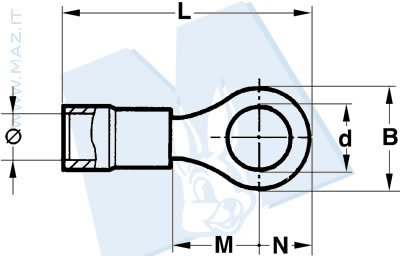

| Codice Nr. | Colore | Sezione cavo | ø Vite mm | ø | B | M | N | L | d |
| RF-M 3 | Rosso - Red | 0.25 ÷ 1.5 | 3 | 3.9 | 5.6 | 4.5 | 2.8 | 17.3 | 3.2 |
| RF-M 3.5 | Rosso - Red | 0.25 ÷ 1.5 | 3.5 | 3.9 | 5.6 | 4.5 | 2.8 | 17.3 | 3.7 |
| RF-M 4 | Rosso - Red | 0.25 ÷ 1.5 | 4 | 3.9 | 7.0 | 6.5 | 3.5 | 20.0 | 4.3 |
| RF-M 5 | Rosso - Red | 0.25 ÷ 1.5 | 5 | 3.9 | 7.8 | 7.1 | 3.9 | 21.0 | 5.3 |
| RF-M 6 | Rosso - Red | 0.25 ÷ 1.5 | 6 | 3.9 | 9.4 | 8.1 | 4.7 | 22.8 | 6.4 |
| RF-M 7 | Rosso - Red | 0.25 ÷ 1.5 | 7 | 3.9 | 9.4 | 8.1 | 4.7 | 22.8 | 7.2 |
| RF-M 8 | Rosso - Red | 0.25 ÷ 1.5 | 8 | 3.9 | 12.0 | 10.3 | 6.0 | 26.3 | 8.4 |
| RF-M 10 | Rosso - Red | 0.25 ÷ 1.5 | 10 | 3.9 | 15.5 | 13.1 | 7.7 | 30.8 | 10.5 |
| RF-M 12 | Rosso - Red | 0.25 ÷ 1.5 | 12 | 3.9 | 18.0 | 15.5 | 9.0 | 34.5 | 13.0 |
| BF-M 3 | Blu - Blue | 1.5 ÷ 2.5 | 3 | 4.9 | 5.6 | 5.0 | 2.8 | 17.8 | 3.2 |
| BF-M 3.5 | Blu - Blue | 1.5 ÷ 2.5 | 3.5 | 4.9 | 5.6 | 5.0 | 2.8 | 17.8 | 3.7 |
| BF-M 4 | Blu - Blue | 1.5 ÷ 2.5 | 4 | 4.9 | 8.0 | 6.5 | 4.0 | 20.5 | 4.3 |
| BF-M 5 | Blu - Blue | 1.5 ÷ 2.5 | 5 | 4.9 | 8.0 | 7.5 | 4.0 | 21.5 | 5.3 |
| BF-M 6 | Blu - Blue | 1.5 ÷ 2.5 | 6 | 4.9 | 9.4 | 8.6 | 4.7 | 23.3 | 6.4 |
| BF-M 7 | Blu - Blue | 1.5 ÷ 2.5 | 7 | 4.9 | 10.0 | 7.8 | 5.0 | 22.8 | 7.2 |
| BF-M 8 | Blu - Blue | 1.5 ÷ 2.5 | 8 | 4.9 | 12.0 | 10.3 | 6.0 | 26.3 | 8.4 |
| BF-M 10 | Blu - Blue | 1.5 ÷ 2.5 | 10 | 4.9 | 15.5 | 13.1 | 7.7 | 30.8 | 10.5 |
| BF-M 12 | Blu - Blue | 1.5 ÷ 2.5 | 12 | 4.9 | 18.0 | 15.5 | 9.0 | 34.5 | 13.0 |
| GF-M 3 | Giallo - Yellow | 4 ÷ 6 | 3 | 6.7 | 8.0 | 8.1 | 4.0 | 26.1 | 3.2 |
| GF-M 3.5 | Giallo - Yellow | 4 ÷ 6 | 3.5 | 6.7 | 8.0 | 8.1 | 4.0 | 26.1 | 3.7 |
| GF-M 4 | Giallo - Yellow | 4 ÷ 6 | 4 | 6.7 | 9.0 | 8.1 | 4.5 | 26.6 | 4.3 |
| GF-M 5 | Giallo - Yellow | 4 ÷ 6 | 5 | 6.7 | 9.0 | 8.1 | 4.5 | 26.6 | 5.3 |
| GF-M 6 | Giallo - Yellow | 4 ÷ 6 | 6 | 6.7 | 11.0 | 11.1 | 5.5 | 30.6 | 6.4 |
| GF-M 7 | Giallo - Yellow | 4 ÷ 6 | 7 | 6.7 | 11.0 | 11.1 | 5.5 | 30.6 | 7.2 |
| GF-M 8 | Giallo - Yellow | 4 ÷ 6 | 8 | 6.7 | 13.6 | 12.1 | 6.8 | 32.9 | 8.4 |
| GF-M 10 | Giallo - Yellow | 4 ÷ 6 | 10 | 6.7 | 13.6 | 12.1 | 6.8 | 32.9 | 10.5 |
| GF-M 12 | Giallo - Yellow | 4 ÷ 6 | 12 | 6.7 | 19.0 | 15.1 | 9.5 | 38.6 | 13.0 |
| GF-M 14 | Giallo - Yellow | 4 ÷ 6 | 14 | 6.7 | 21.0 | 16.1 | 10.5 | 40.6 | 15.0 |
| GF-M 16 | Giallo - Yellow | 4 ÷ 6 | 16 | 6.7 | 24.0 | 17.1 | 12.0 | 43.1 | 17.0 |
