Scheda Tecnica

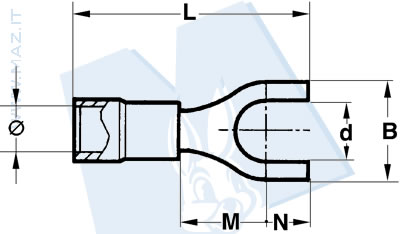

Capicorda preisolati forcella
| Codice Nr. | Colore | Sezione cavo | ø Vite mm | ø | B | M | N | L | d |
| RF-U 3 | Rosso - Red | 0.25 ÷ 1.5 | 3 | 3.9 | 5.5 | 5.5 | 4.0 | 19.5 | 3.2 |
| RF-U 3.5 | Rosso - Red | 0.25 ÷ 1.5 | 3.5 | 3.9 | 6.0 | 6.5 | 3.8 | 20.3 | 3.7 |
| RF-U 4 | Rosso - Red | 0.25 ÷ 1.5 | 4 | 3.9 | 6.5 | 7.5 | 3.7 | 21.2 | 4.3 |
| RF-U 5 | Rosso - Red | 0.25 ÷ 1.5 | 5 | 3.9 | 8.5 | 7.5 | 3.7 | 21.2 | 5.3 |
| RF-U 6 | Rosso - Red | 0.25 ÷ 1.5 | 6 | 3.9 | 9.4 | 8.1 | 4.7 | 22.8 | 6.4 |
| RF-U 6/1 | Rosso - Red | 0.25 ÷ 1.5 | 6 | 3.9 | 12.0 | 9.2 | 7.1 | 26.3 | 6.4 |
| RF-U 8 | Rosso - Red | 0.25 ÷ 1.5 | 8 | 3.9 | 14.0 | 10.0 | 6.3 | 26.3 | 8.4 |
| RF-U 10 | Rosso - Red | 0.25 ÷ 1.5 | 10 | 3.9 | 17.5 | 13.1 | 7.7 | 30.8 | 10.5 |
| RF-U 12 | Rosso - Red | 0.25 ÷ 1.5 | 12 | 3.9 | 20.0 | 15.5 | 9.0 | 34.5 | 13.0 |
| BF-U 3 | Blu - Blue | 1.5 ÷ 2.5 | 3 | 4.9 | 5.5 | 5.5 | 4.0 | 19.5 | 3.2 |
| BF-U 3.5 | Blu - Blue | 1.5 ÷ 2.5 | 3.5 | 4.9 | 6.4 | 6.5 | 3.8 | 20.3 | 3.7 |
| BF-U 4 | Blu - Blue | 1.5 ÷ 2.5 | 4 | 4.9 | 6.5 | 7.5 | 3.7 | 21.2 | 4.3 |
| BF-U 5 | Blu - Blue | 1.5 ÷ 2.5 | 5 | 4.9 | 8.5 | 7.5 | 3.7 | 21.2 | 5.3 |
| BF-U 6 | Blu - Blue | 1.5 ÷ 2.5 | 6 | 4.9 | 9.4 | 8.1 | 4.7 | 22.8 | 6.4 |
| BF-U 8 | Blu - Blue | 1.5 ÷ 2.5 | 8 | 4.9 | 14.0 | 10.0 | 6.3 | 26.3 | 8.4 |
| BF-U 10 | Blu - Blue | 1.5 ÷ 2.5 | 10 | 4.9 | 17.5 | 13.1 | 7.7 | 30.8 | 10.5 |
| BF-U 12 | Blu - Blue | 1.5 ÷ 2.5 | 12 | 4.9 | 20.0 | 15.5 | 9.0 | 34.5 | 13.0 |
| GF-U 3.5 | Giallo - Yellow | 4 ÷ 6 | 3.5 | 6.7 | 7.5 | 8.5 | 3.9 | 26.4 | 3.7 |
| GF-U 4 | Giallo - Yellow | 4 ÷ 6 | 4 | 6.7 | 7.5 | 8.0 | 4.4 | 26.4 | 4.3 |
| GF-U 5 | Giallo - Yellow | 4 ÷ 6 | 5 | 6.7 | 9.5 | 8.0 | 4.4 | 26.4 | 5.3 |
| GF-U 6 | Giallo - Yellow | 4 ÷ 6 | 6 | 6.7 | 10.0 | 11.0 | 5.5 | 30.5 | 6.4 |
| GF-U 8 | Giallo - Yellow | 4 ÷ 6 | 8 | 6.7 | 15.0 | 12.0 | 8.0 | 34.0 | 8.4 |
| GF-U 10 | Giallo - Yellow | 4 ÷ 6 | 10 | 6.7 | 15.5 | 13.0 | 8.0 | 35.0 | 10.5 |
| GF-U 12 | Giallo - Yellow | 4 ÷ 6 | 12 | 6.7 | 21.0 | 15.1 | 9.5 | 38.6 | 13.0 |
| GF-U 14 | Giallo - Yellow | 4 ÷ 6 | 14 | 6.7 | 23.0 | 16.1 | 10.5 | 40.6 | 15.0 |
| GF-U 16 | Giallo - Yellow | 4 ÷ 6 | 16 | 6.7 | 26.0 | 17.1 | 11.5 | 42.6 | 17.0 |
